NIM Bins

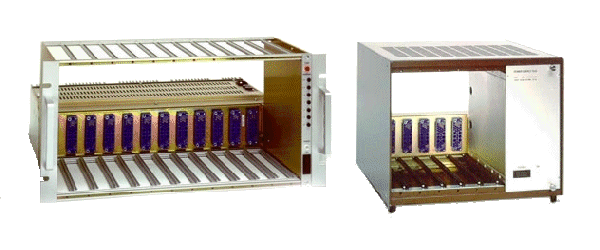

FAST ComTec NIM Bins with power supplies offers high stability, low noise, fold back current limitation at 120% power level, thermal supervision and protection. Both rack-mount and smaller tabletop units are available, ranging from 60 watts capacity (5-6 voltages) to 140 to 300 watts (6 voltages). The input voltage range is configurable from 105V to 250V AC. The NIM BIN's are known for their excellent reliability with many of these NIM bin are in operation for more than 30 Years!

See individual data sheets for more details and specific features.

 DS Series, NIM BINs
 Full width rack mount NIM BINs (12 slots)
 Model  Description
 DS 7022  140 Watts, 7 Voltages (6V: 5A, 5A; 12V: 2A, 2A; 24V 1A, 1A; 117VAC 0.5A).
 DS 7023  140 Watts, 7 Voltages, Overvoltage protection for +/- 6V.
 DS 7024  160 Watts, 7 Voltages (6V: 5A, 5A; 12V: 3A, 3A; 24V 2A, 2A; 117VAC 0.5A).
 DS 7025  160 Watts, 7 Voltages, Overvoltage protection for +/- 6V.
 DS 7030  200 Watts, 7 Voltages (6V: 10A, 10A; 12V: 3A, 3A; 24V 2A, 2A; 117VAC 0.5A).
 DS 7031  200 Watts, 7 Voltages, Overvoltage protection for +/- 6V.
 DS 7032  300 Watts, 7 Voltages (6V: 12.5A, 12.5A; 12V: 4A, 4A; 24V 2.5A, 2.5A; 117VAC 0.5A).
 DS 7033  300 Watts, 7 Voltages, Overvoltage protection for +/- 6V.

 Benchtop-portable NIM BINs, non-rack mountable (6 slots, limited power capacity)
 Model  Description
 DS 7014/9  7014, 60 watt triple slot width power supply; 6 Voltages
(+6V: 3A [no -6V]; 12V: 1A, 1A; 24V: 0.5A,0.5A; 117VAC 0.1A). Discontinued
 DS 7018/9  7018, 70 watt triple NIM slot width power supply; 7 Voltages
(6V: 1A, 1A; 12V: 1.5A, 11.5A; 24V: 0.5A,0.5A; 117VAC 0.1A).
